Hitachi Columbus Campus

Mannheim (DE)
HCC
Sustainable, simple, beautiful!
Hitachi Columbus Campus
Hitachi Columbus Campus
Hitachi Columbus Campus
OFFICE & ADMINISTRATION / Sustainability / Timber Construction
Project dataView

Planning: AllesWirdGut

Project stages: 1–5

Client: 3iPro GmbH

Competition: September 2021 – 1st prize

GFA: 35,105 m²

Team: Alexis Brune, Daniel Pannacci, Dorotea Malnar, Eva Birova, Ewelina Pawlik, Irida Xanthou, Karolina Pettikova, Ladislav Farkas, Marko Acimovic

Monika Prinčić, Olaf Härtel, Paula Gross, Till Martin

Landscaping: Lindle+Bukor

Structural Engineering and Building Physics: Bollinger+Grohmann

HVAC Engineering: Transsolar

Fire protection (Competition): Müller-BBM

Facade planner: Schöne Neue Welt Ingenieure

With its transparent appearance, the office complex stands for a sustainable corporate attitude—and also demonstrates that resource-saving construction, climate-neutral operation, and contemporary aesthetic need not at all be conflicting interests.

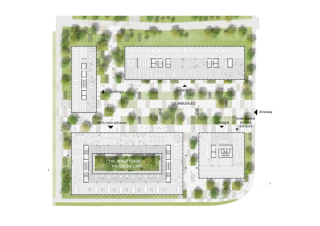

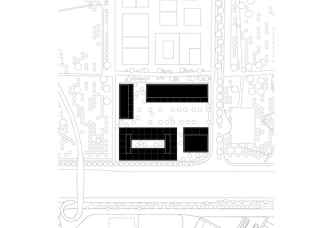

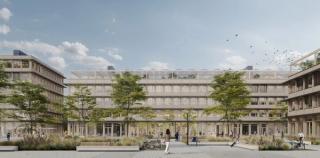

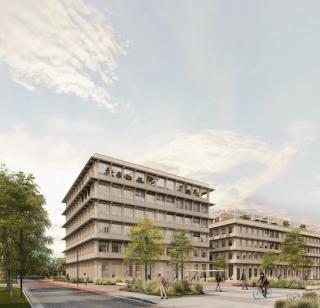

The campus consists of four individual built volumes defining a central square open on all sides. Trees alternate with lawns and unsealed surfaced areas. Parks bordering on the premises extend towards the middle and create an urban space with a green ambience, which all building entrances are oriented to. This leaves the areas right in front of the office buildings open to accommodate inviting entrance areas and enlivening gastronomic offerings. Facing Gorxheimer Straße, a modern work and business sphere, easily visible from all directions, presents itself to the city. The maximum permitted building height for this part was not used to the full, which allows for an expansive roof garden with a lushly greened pergola and a photovoltaic system. The goal of the Hitachi Columbus Campus is climate-neutral building operation. It means that there is as much energy produced as is needed. The photovoltaic system generates electricity which can be used immediately or stored.

The ventilation system is based on solar chimneys, a technology that has been proven in warm countries for centuries: Fresh air from under the building moves upward through the individual riser shafts. Heating is done with low-temperature heat pumps, and for cooling, groundwater is used. Both the photovoltaic and the solar chimney systems work on the outside of the building skin and therefore are consciously made visible. The four-story office buildings are built as purely wood construction from prefabricated elements. This saves construction time and, by using a high share of renewable materials on both the in- and outsides, takes account of the ecological objectives of the Hitachi Columbus Campus: While the cozy material of wood makesfor homey comfort in the flexible work spheres inside, the weather-protective projecting concrete parts on the exterior provide for maximum durability of the façade. Combined, they give the campus lasting, that is, sustainable, beauty.

TIMBER, ENERGY AND OPEN SPACE

1 green energy

2 natural ventilation system

3 green recreational spaces

4 modern timber construction

CLIMATE AND ENERGY CONCEPT

1 Outside air preconditioned via earth duct

2 Groundwater well / free cooling

3 Water-to-water heat pump

4 District heating connection

5 Supply air handling unit / Filter / Fan / Heating coil (run-around coil system)

6 Landscaped courtyard

7 Projecting façade photovoltaics

8 Radiant heating/cooling panels between beams

9 Displacement ventilation via cavity floor

10 Supply and extract air shaft

11 Pergola PV & rooftop PV

12 Heat recovery (run-around coil system)

13 Exhaust air chimney

CONSTRUCTION SYSTEM

1 Floor-integrated supply air duct

2 Cavity floor system / Screed / Hollow floor support / Paving slabs on excavated sand

3 Ceiling elements cross-laminated timber (CLT)

4 Stacked-plank timber secondary beams

5 Stacked-plank timber primary beams

6 Timber columns

7 Basement and foundations in Ecocrete 50R C30/37

8 Prefabricated unitised façade

9 Opaque panels with mineral wool insulation

10 Timber windows with triple insulating glazing

11 Photovoltaic canopy with standard PV modules

SYSTEM SECTION

1 Structure – Columns | Spruce timber columns

2 Floor finish – Vinyl | Woven vinyl flooring made from recycled material

3 Service routing – Ventilation | Via a raised access or cavity floor on pedestals

4 Acoustic insulation – Fire protection | Paving slabs as ballast on loose Rhine sand (from on-site excavation)

5 Compartmentation | Fire-resistant plasterboard,

Wetguard membrane & joints sealed with fire-resistant compounds

6 Structure – Floors | Cross-laminated timber slab & ribbed floor structure

7 Heating – Cooling | Via ceiling panels between the timber ribs

8 Vertical fins | Vertical routing of PV cables & rainwater pipes

9 Unitised window façade | Triple glazing and pine frames

10 Horizontal projections | Solar shading, weather protection for the timber façade and support for the photovoltaic modules

11 Photovoltaics | Continuous around the building at every floor

12 Drainage | Continuous rainwater gutter along the outer edge of the projections

13 Fire protection | Continuous fire barrier integrated into the projections

14 Solar shading | Concealed external venetian blinds with integrated daylight redirection

It’s a simple concept: the simpler something is formulated, the more easily it is understood. This is also true of the architectural language of the Hitachi Columbus Campus in Mannheim, Germany.

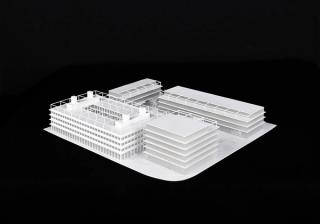

Visualization: AllesWirdGut, Illustrations: AllesWirdGut | Sustainability sketch: Transsolar/ AllesWirdGut, Model: mattweiss
