Quarter Terrace on Korber Höhe, Waiblingen

Stuttgart (DE)

KOH

Nice Prospects

Quarter Terrace on Korber Hhe, Waiblingen

HOUSING / Hybrid Construction / MIXED USE / Social Sustainability / Sustainability

Show on Map Show on Planet Earth

Project dataView

Planning: AllesWirdGut

Project stages: tba

Client: City of Waiblingen

Invited competition: 11.2024 – 1st prize

GFA: 14,000 m²

Team: Ewelina Pawlik, Marko Acimovic, Paula Pavlekovic

Landscape planning: factorgruen landscape architects, Freiburg

Energy & Climate Design: Büro Happold GmbH, Munich

The project “Quarter Terrace on Korber Höhe” on building plot 4 consistently follows the guiding principles of the urban-development framework plan: permeable buildings, clear open spaces, and a harmonious combination of architecture and landscape. The buildings with their carefully laid-out visual axes blend into the green surroundings, creating a natural network of built-up and open areas. Situated in the center of the quarter is the quarter square—a vibrant green meeting zone with cafés and communal spaces that invites lingering. Its exposed location makes it the eponymous “quarter terrace”, which offers high amenity quality and generous views of the surrounding landscape.

A five-story building on the west side and an eight-story block building provide the frame for this urban center while an arcade alongside the block building leads to the mobility hub which, with three basement and two upper floors, is gently embedded in the sloping terrain. Efficient parking organization and a rich offer of accompanying facilities define a modern mobility solution for the quarter. Moreover, the use concept facilitates intergenerational communion: Different apartment types adaptively cater to diverse lifestyles and needs. In particular, the concept of communal living, which aims to enable aging in the community setting, plays a central role—encouraging a life of mutual support and strengthening social exchange between generations. Flexibly organizable residential modules offer room for classical family apartments as well as for new residential types in which secluded private spaces merge into open community areas, as for example in the access balconies.

The block building with its six stories proper and two staggered stories also provides a pronounced urban-design accent. Its setback along Stauferstraße makes for a smooth transition to the surrounding buildings. All residential units benefit from optimal orientation, varied apartment types, and flexible “switchable spaces” that are adaptable to individual needs. The construction of the built volumes combines reinforced-concrete prefab framing with plywood board ceilings which enables an optimal balance of structural stability and reusability in a circular economy sense. A wood-stud construction with a rear-ventilated wood façade provides excellent thermal insulation and reduces energy requirements. Triple glazing and a glazing-to-wall-area ratio of less than 40% minimize the need for heating and cooling while wraparound balconies, exterior sun blinds, and green facades improve the microclimate and optimize heat protection in the summer.

The “Quarter Terrace on Korber Höhe” combines urban-design quality, long-term social viability, and sustainable construction—an entirely open green residential quarter with nice views and future-proof prospects.

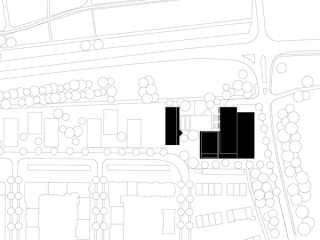

Site plan

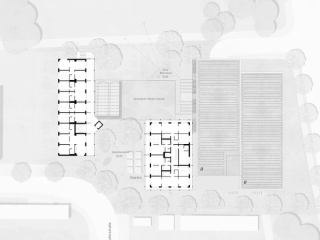

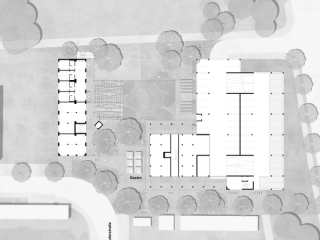

Ground floor

Standard floor

Section north-south

Section east-west

Usage overview

1 Parking

2 Retail

3 Collective use

4 Housing

5 Housing ancillary use

Bonus rooms

Neighborhood square

Arcade

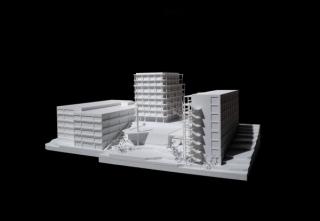

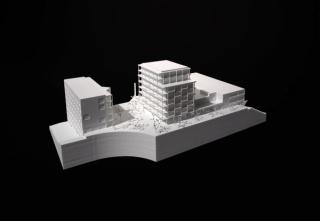

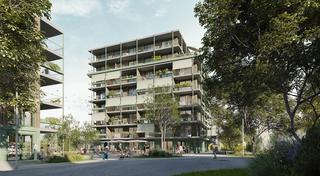

Visualization: AllesWirdGut, Illustrations: AllesWirdGut & faktorgruen, Model: mattweiss
